Access Cluster’s Detail Informations
Access Cluster’s Detail Informations
Updated on 14 Mar 2024

Step 1: In the menu, select Kubernetes, and the system will display the Kubernetes Management page.

Step 2: Select the Cluster you want to view detailed information about.

Step 3: Switching between tabs to view corresponding information

3.1. Essential Properties Tab: Display information of Cluster Information, Load Balancer VIP, API.

  • Cluster Information: Basic information about the Cluster, including Cluster ID, Version, Kubernetes Config, Status, Public IP, and SSH Key.

  • Load Balancer VIP: Virtual IPs of LB which is used for the K8s API and Ingress.

  • Dashboard & API: API URL

3.2. Node Pools Tab: Configuration information of Master Nodes and Worker Nodes.

  • Master Configuration: Master Node configuration: Node Count, CPU, Memory, Disk

  • Worker Configuration: Worker Node configuration: Node Count, CPU, Memory, Disk, Storage Policy, Auto Scale

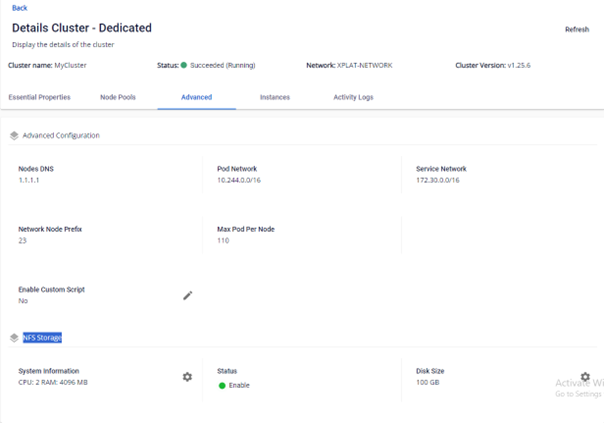

3.3. Advanced Tab: Advanced parameters of the Kubernetes Cluster

  • Advanced Configuration: Advanced parameters of Kubernetes Cluster (Node DNS, Pod Network, Service Network, Network Node Prefix, Max Pod Per Node, Enable Custom Script)

  • NFS Storage: NFS status (Enable/Disable), and disk capacity of NFS Storage.

3.4. Instances Tab: List virtual machines that belong to this Kubernetes Cluster, both Master Nodes and Worker Nodes

3.5. Activity Logs Tab: Action Logs of this Kubernetes Cluster.
